THE CRT P2N (FRENCH FREE FLIGHT 143,9875Mhz) TRANSCEIVER VHF Pro PREPROGRAMMED TO FLY IN FRANCE

          Modern, Compact, Light and very Efficient

                            at a VERY AFFORDABLE PRICE

IMPORTANT

THIS DEVICE DO NOT RECEIVED THE AIRCRAFT FREQUENCIES

JUST FREE FLIGHT FREQUENCY (PARAGLIDER, DELTA, PARAMOTORS ...)

Rather than a long comment :

Undeniable strengths for FREE FLIGHT :

• VHF FM but also full 136-174 MHz preprogrammed for FREE FLYING on 143.9875 ONLY

• Codes CTCSS and DCS codes

• Intelligent fast charger

• Long battery Li-Ion 1200 mA

• Automatic Transmission VOX

• Keypad lock.

• Double jack Accessories Connector KENWOOD type
• Rugged SHOCK RESISTANT shell

• 2 years warranty in France

• Instructions in French (possible in English on demand).

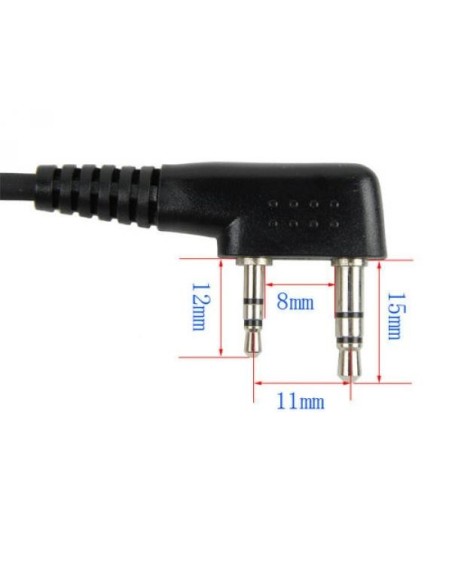

For headset microphone or Hp etc ... this is a Kenwood connector type.

The CRT P2N is very advantageously replacing the more expensive products with a greater frequency stability and a much better emitting range.

NOTA : This transceiver  is NOT able to RECEIVE AIR-BAND

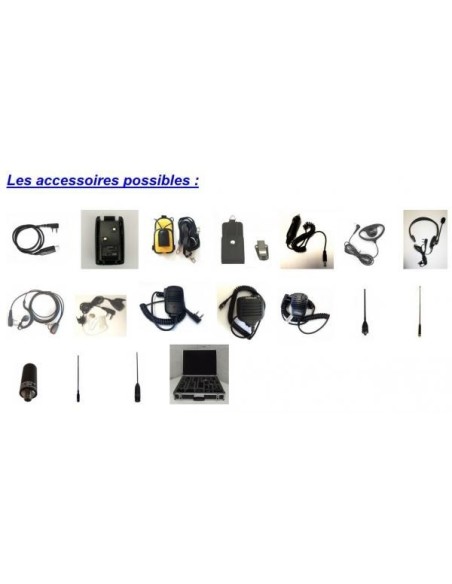

We have accessories available for this product such as :

◊ Microphone tie.
◊ Ear-piece.
◊ Microphone HP.
◊ Spare battery pack.
◊ Battery Eliminator with direct connection to cigarette lighter.
◊ Carrying Case.
◊ Holster.

Please check our catalog

VHF Transceiver


•      Frequency: 136-174 MHz preprogrammed for FREE FLYING on 143.9875

•

  Data sheet

  Norm	TALKY WALKY VHF PROFESISIONAL
  Mode	VHF
  Frequency range	136 - 174 mHz Preprogrammed on 143,9875 MHz
  Power	1 Watt - 5 Watts
  Input voltage	7.4 Volts DC
  Memories	128 channels programming 136 - 174 mHz
  Channel spacing	12.5 kHz / 25 kHz
  Bandwidth	12.5 kHz / 25 kHz
  Step of increment	5 / 6.25 / 10 / 12.5 / 25 / 37.5 / 50 kHz
  TONE BURST	Yes : 1750 Hz
  SQUELCH	Yes : elimination of background noise
  CTCSS / DCS (encoder/decoder)	Yes : sub-audio code to activate repeater like selective tone
  DTMF (encoder)	Yes : tones selected to activate repeater, internet gateway and other items
  VOX function	Yes : this feature triggers your microphone sound (hands free)
  TOT function	Yes : time out timer
  SCAN function	Yes : automatic search of busy channels
  TX/OFF function	Yes : forbidding emission
  REVERSE function	Yes : the current channel RX frequency will be switched to TX frequency
  ALARM function	Yes : the transceiver will sound alarm beep, meanwhile, it start transmitting and send the alarm beep to companions or systems
  APO function	Yes : automatic power off (programmable)
  DSP function	Yes : digital signal processor
  Various functions	Vibrator + Keylock + Radio FM : 88-105 mHz
  Display	LCD display : red, orange, green
  Level display	Battery level indicator, battery voltage ...
  Options	Programming cable + software
  Battery	Li-ion 1200 mAh
  Connection	Kenwood type
  Deliver with	Desktop charger, battery, antenna, strap and belt clip
  Size	100 x 56 x 29 mm (with battery, without antenna)
  Weight	185 gr (with battry and antenna)
  Guaranty	2 years

Can be programmed by PC (optional cable software please ask us, see also our note on paying previously a usage fee to ARCEP for a profesional usage)

The CRT P2N (FFLV) sold by Aerodiscount are programmed With NO additional cost on Free flight frequency exclusively.

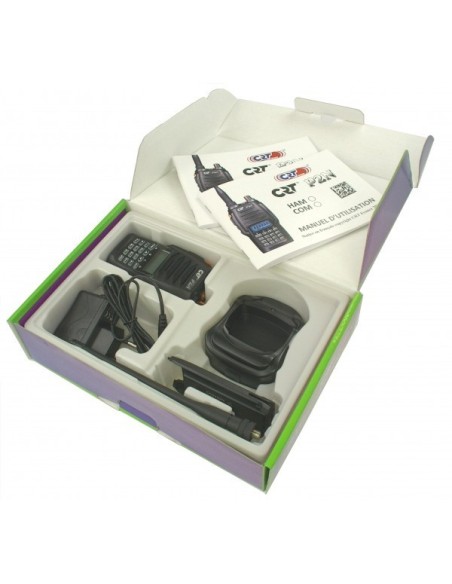

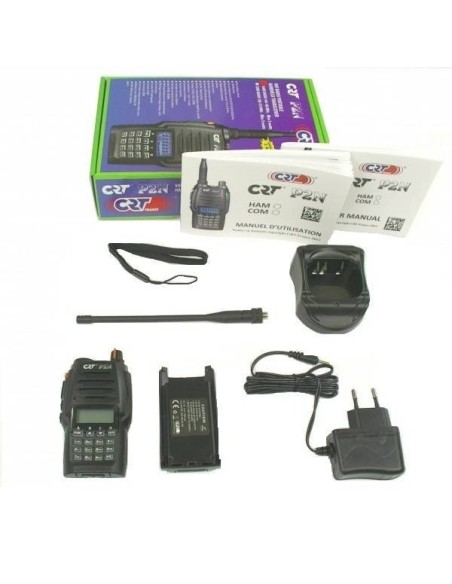

What's in the box :

A Transceiver CRT-P2N.

A rapid desktop charger with power adapter 220 v.

A 2000mAh Li-Ion batteries.

A Belt Clip and Wrist strap.

An instruction manual in French.

° This product may need a 4 to 5 days delivery delay.

* Data from the manufacturer / importer

This Radio is CE approved

CAREFUL!

    If you use an unlicensed radio, your liability may be engaged in connection      with a club or a professional usage.

Be CAREFUL. 114-146 is a frequency range reserved EXCLUSIVELY for Amateur Radio and 136-174 for professional radio with licence.

* IMPORTANT NOTICE: The use of the transmitter / receiver must be done according to the laws and aviation regulations applicable in the country of use.

In France : The free flyer person using this transceiver must hold a certificate of radiotelephone operator (or radio-telegraphist)
(for general aviation pilots certificate is usually given along with the license).

This certificate is certified by a card-user license, and is issued after passing an examination conducted by the ANFR (National Agency of Frequencies).

The holder is also assigned a call sign issued by the same administration. (Cost about 80 €)

We can not be held liable for a breach of this legislation by the user,

in particular lack of information.

Reminder and Reference to the legislation:

Free flight frequency 143.9875 has been specifically assigned by the government.
It is official and should serve only the safety of pilots.
It was the subject on the part of D.R.G. (Directorate General Regulations) of a circular SP/DRG/R.RS/1 of July 1992, called "Radio equipment transmitting only speak on the frequency 143.9875 MHz exclusively to the practice of free flying - specification of approval ".
It states:

•  ch.1.2 "equipment used exclusively portable."

• ch.1.6 "radio equipment are subject to individual license and can be used by a holder of the pilot's flying free."
• ch.2.1 "the frequency 143.9875 MHz is reserved exclusively to the practice of free flight."

Any other frequency must be prohibited.
So be careful because we found on the Internet quite a few free-flight clubs that use amateur radio frequencies (located between 144 and 146 MHz) They uses these amateur frequencies or business freq. without any authorisation of use or having declared, nor paid the license .
You are solely responsible for the frequency used.
If someone files a complaint or if you are subject to a control of the police, you will be verbalized and sentenced, as an individual and your club or operator of the area to take off or landing.

UNLICENSED, the frequencies 144-146 and PROS

AND FREQUENCIES PROHIBITED

You must hold and possess the appropriate license for having the right to transmit on frequencies other than the 143.9875 MHz ..
