MONO BAND MOBILE ANTENNA OMNIDIRECTIONAL. 108-960 SKB 1/4 wave Expand

MONO BAND ANTENNA OMNI 108-960 SKB 1/4 wave

New

MONO BAND MOBILE ANTENNA OMNIDIRECTIONAL. 108-960 SKB 1 / 4 wave 39€ for mobile vehicule.

More details

39,00 €

tax incl.

The minimum purchase order quantity for the product is 4

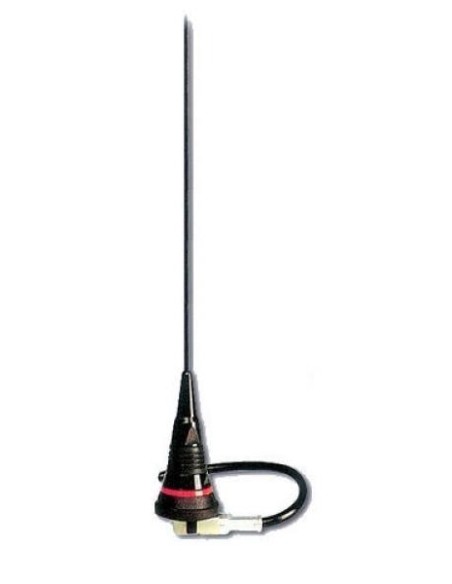

MONO BAND OMNIDIRECTIONAL MOBILE ANTENNA 108-960 SKB 1/4 WAVE



MONO BAND OMNIDIRECTIONAL MOBILE ANTENNA .

This VHF antenna is a classic for ULM and Home Built aircraft (CNRA).

This is an antenna wire that comes with 5 m cable without connector.

The correct connector for the equipment is to be welded, leaving flexibility as to the length of cable and for the choice of the end connector according to the type of equipment or installation.

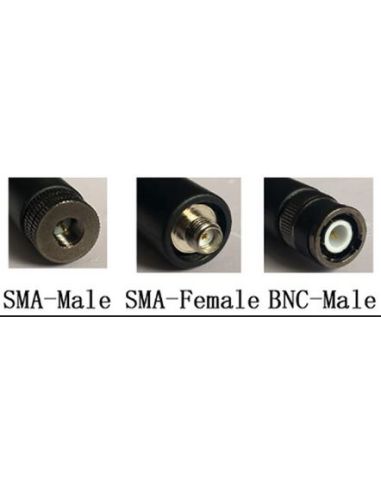

Now we offer you the posibility to order on the site, this antenna with Female FME connector set, often just buy a BNC FME adapter to connect directly to a radio. The majority of aviation radios are supplied with a BNC connector.



Technical Data :



       Electrical characteristics:



    • Frequencies: 108-960 MHz
    • Impedance: 50 Ohms
    • Type: 1 / 4 wave
    • Maximum power: 100 W
    • Length: 700 mm
    • Weight: 280 g
    • Polarization: Vertical
    • Gain: 0dBd
    • Supplied with 5 m cable RG58

This antenna is to put at the right size to make it work properly in emission on the frequency range you want.

(see charts to download, but you can also use the formula calul: C / F / type of wave = length)

(Speed of light (300) / frequency) x 1 / 4 = length of the antenna)



 THIS ANTENNA CAN BE ALSO DELIVERED :

  WITH FME connector ref :   -  SKB 108-960 1/4 onde/FME FEMELLE
  WITH MAGNETIC BASE ref : -  SKB 108-960 MAG

Check the price of these options on the little opening menu under the mentionned price of this description


CAUTION:

This antenna if not kept in permanent stock cannot be then ordered but after contacting us it will generally required a delay of 4 to 5 days to be delivered to you.

SKB 108-960

Technical manual SKB 108-960 1/4 wave

Download (1.17M)
