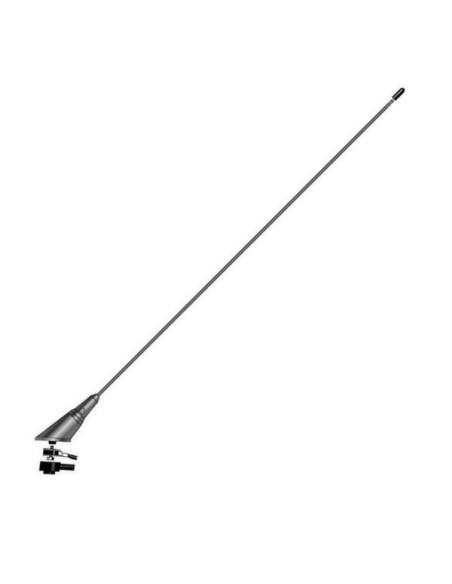

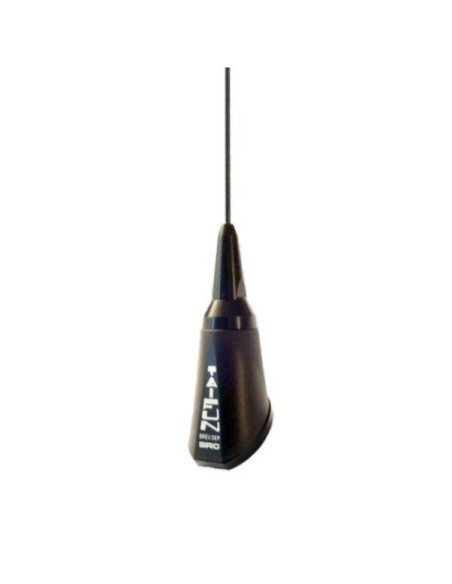

ROOF ANTENNA SIRIO TAIFUN 118-480 Aviation for Mobile VHF Expand

ROOF ANTENNA SIRIO TAIFUN 118-480 Aviation

New

Wipe Antenna TAIFUN for Mobile VHF, Aviation Band, 118-480 MHz, 1/4λ -SIRIO 54€

- A roof antenna with a good performance for any vehicle with a mobile transceiver,
- Whip black cylindrical stainless steel
- Whip-removable for washing cars easily.
- 100 Watt

- Supplied with cable.



More details

54,00 €

tax incl.

The minimum purchase order quantity for the product is 2

Wipe Antenna TAIFUN 118-480 MHz 1/4λ for Mobile VHF, Aviation Band,  -  SIRIO


The SIRIO TAIFUN antenna is ideal for runway vehicles.

It's a roof antenna discrete and solid with a good yield for a 1 / 4 wave, accepting TOSS setting.
It looks like a small CB antenna that we all have at a time, angled for a better penetration and to avoid the wind whistling due to speed.

It is designed for any vehicle with a mobile VHF transceiver (handheld or fixed).

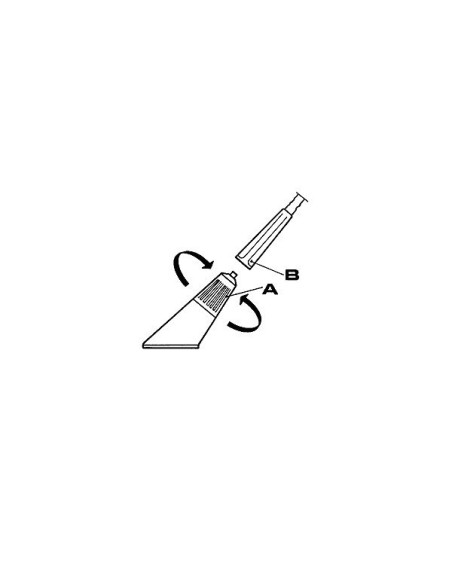

The whip is removable if it is attached to the roof to allow tha wash of a vehicle into automatic roller cleaning without risk.

Even if it could be mounted on an ultralight, it is rather designed for wheeled vehicules because of its spectrum. (see technical documentation).



Features :

  •    Mobile antenna, Mono-band
  •    Unity-gain, Omnidirectional

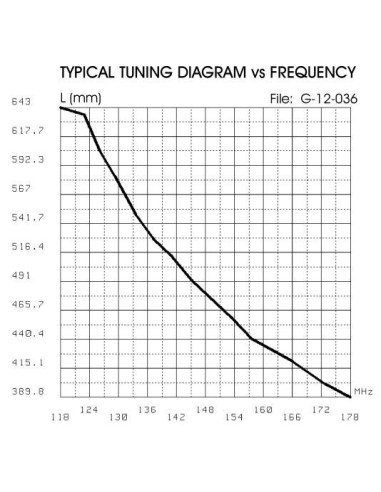

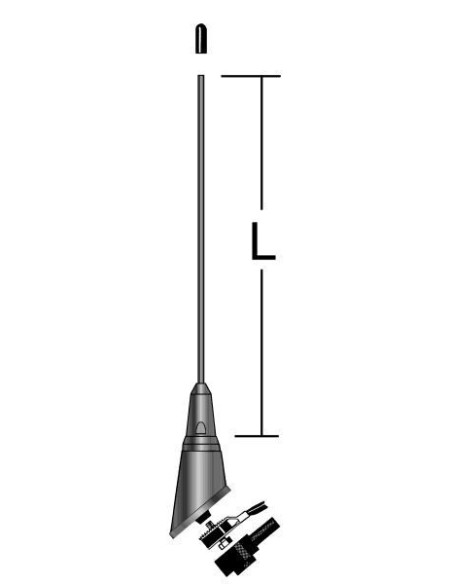

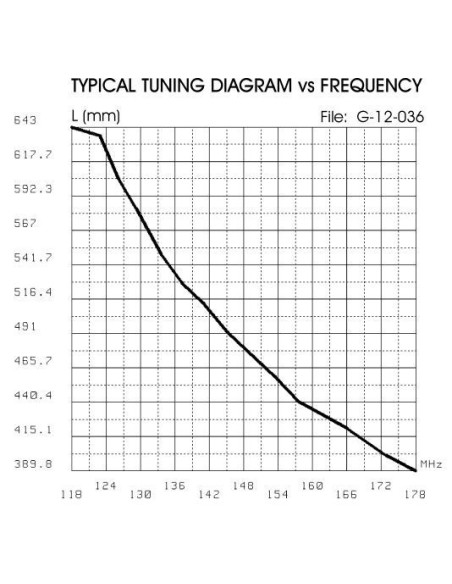

  •    Tunable by whip cutting
  •    Black stainless steel cylindrical whip
  •    Detachable whip for car-washes access

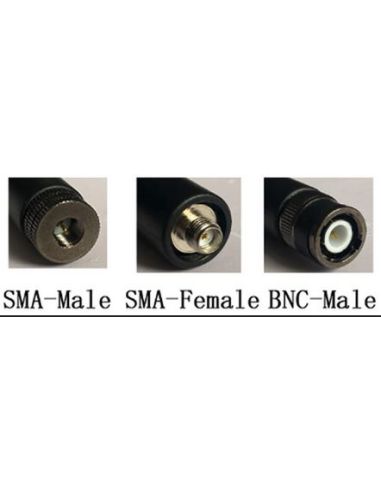

  •    Without connector (need to buy one to adapt to your radio conector)

Electrical Data :

  •    Type: 1/4 λ Mobile Antenna
  •    Frequency range: tunable 118...480 MHz
  •    Impedance: 50Ω
  •    Radiation (H-plane): 360° omnidirectional
  •    Polarization: linear vertical
  •   Gain: 0 dB ref. to a λ /4 whip

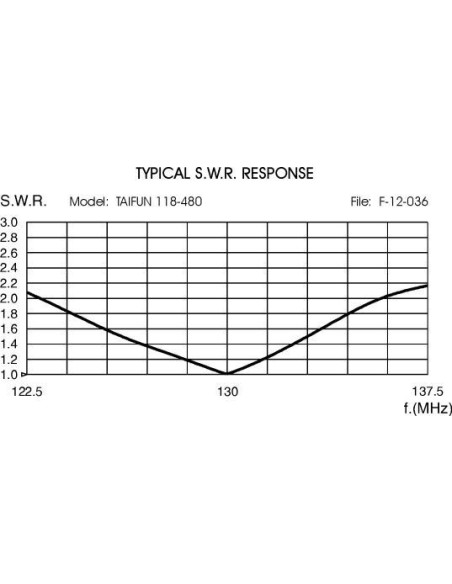

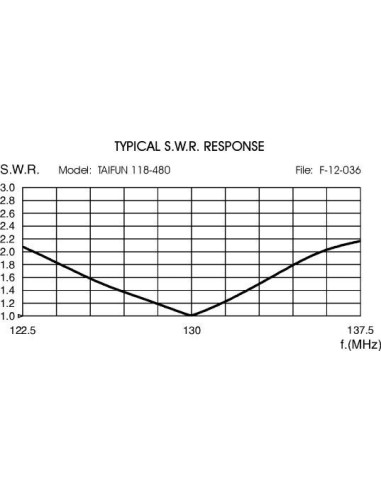

  •   SWR @ res. freq.: ≤ 1.5
  •   Max. Power (CW) @ 30°C: 100 Watts
  •   Cable lenght / Type : 5.5 m / RG 58

Mechanical Data :

  •    Materials: Black Chromed Stainless Steel 17/7 PH, Chromed Brass, Nylon
  •    Height (approx.): 700 mm
  •    Weight (approx.): 350 gr
  •    Mounting Hole: Ø 10 mm

Packing Includes :

  • Antenna
  • Supplied with 5.5 m RG-58 coax cable
  • User Manuel



CAUTION:

If not available on our website, Please contact us then this antenna will require a delay of 4 to 5 days to be delivered to you.
