Reduced price! Ultra Light Gyrocopter Paramotor Helmet ANR General Aviation Jacks Expand

Ultra Light Gyrocopter Paramotor Helmet ANR General Aviation Jacks

New

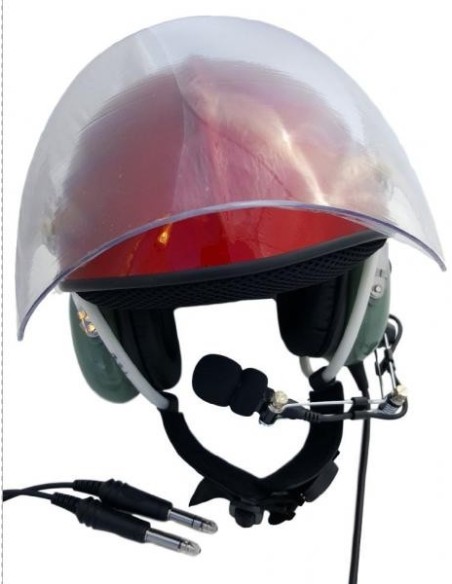

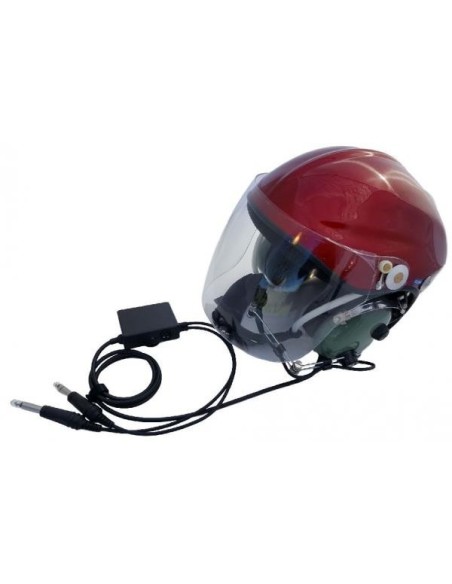

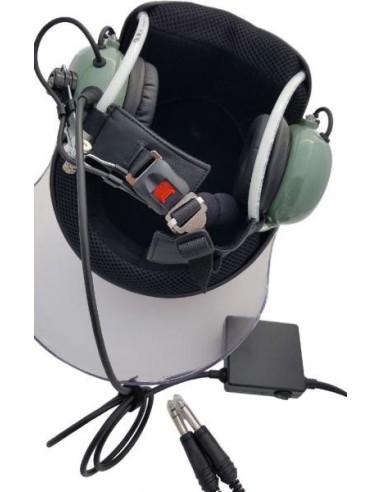

Helmet for ULTRALIGHT Gyrocopter Paramotor with ANR Headset and general Aviation Jacks, push to talk on earcup, anti-reflection visor.

More details

342,00 €

tax incl.

583,00 € tax incl.

-241,00 €

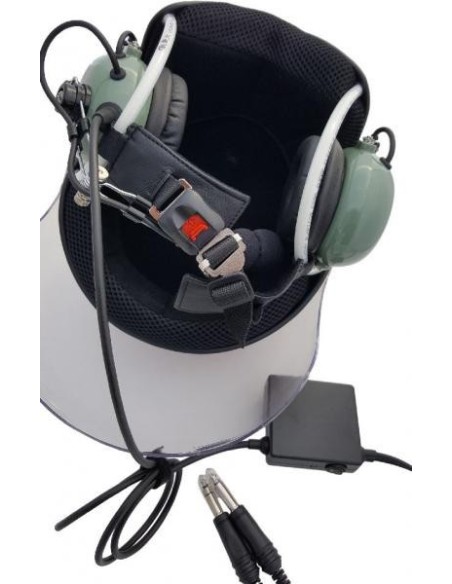

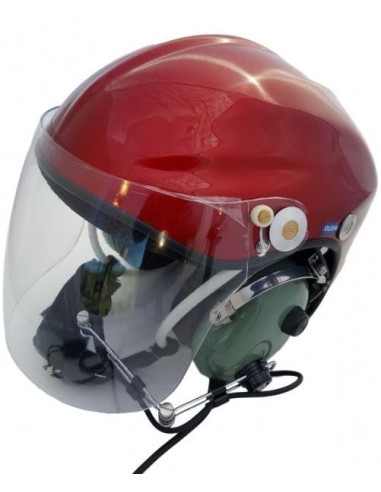

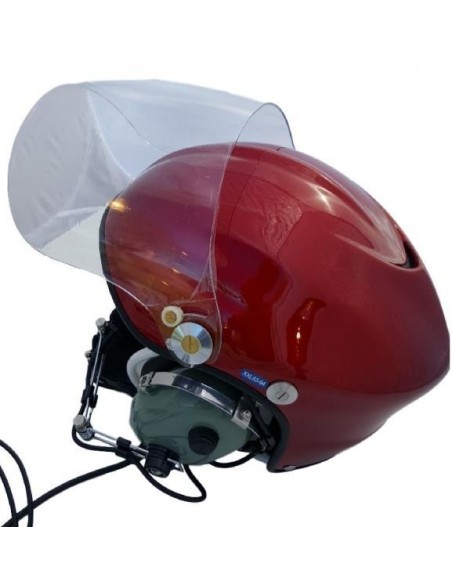

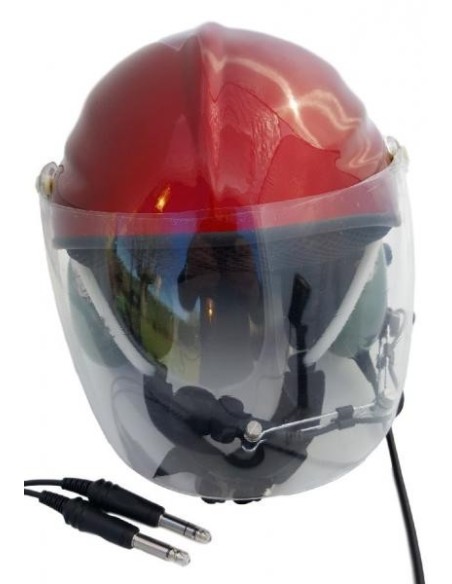

Helmet for ULTRALIGHT Gyrocopter Paramotor with ANR Headset and general Aviation Jacks, push to talk on earcup, anti-reflection visor.

 Helmet +  ANR headset

This is a FULL SPectrum II Base without headband

Overview

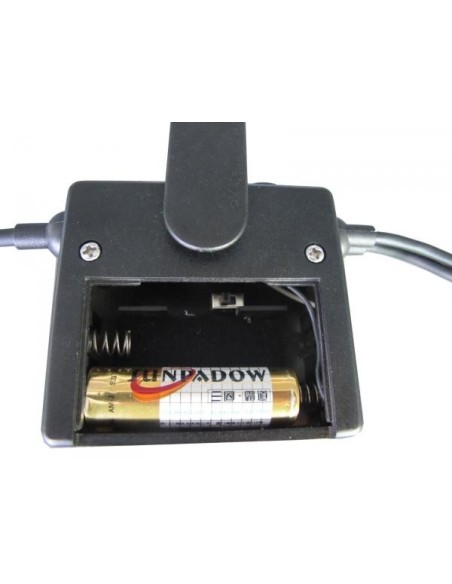

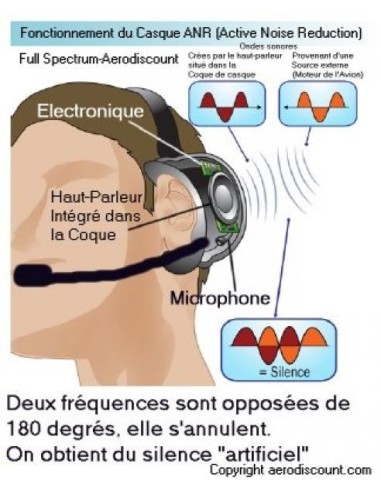

  • ANR Aviation Headset (ANR power: 2 batteries 1,5 v)
  • Kenwood Plug
  • Super Soft Double Foam Head Pad
  • Noise-canceling electret Microphone
  • Precision mono rail boom for perfect microphone placement

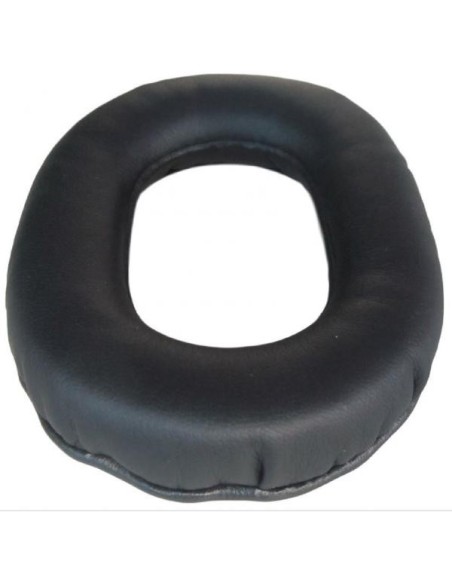

  • Easy-to-wear super soft silicone double gel ear seals

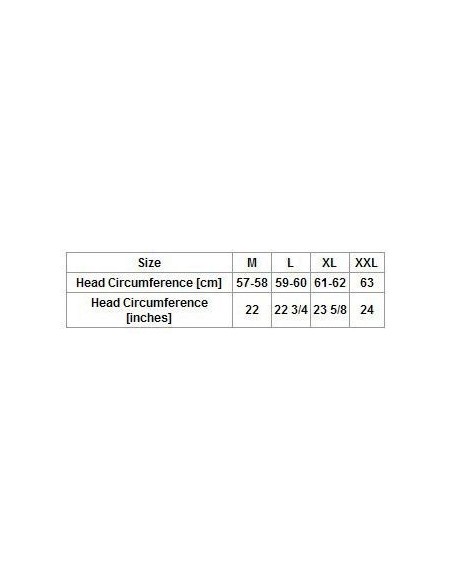

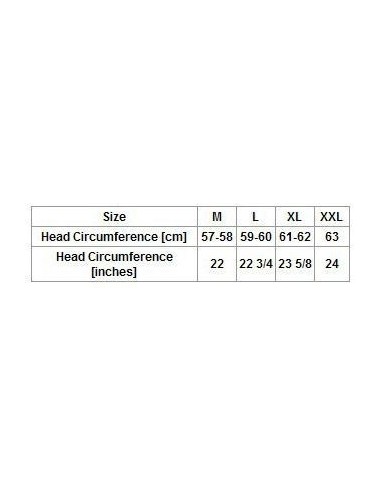

  • Size Adjustment possible
  • PTT on earcup
  • Straight cord from headset to molded plug, 150CM
  • Assembled strictly following the FAA TSO standards
Headset Color: green
Helmet Color : Electric Red

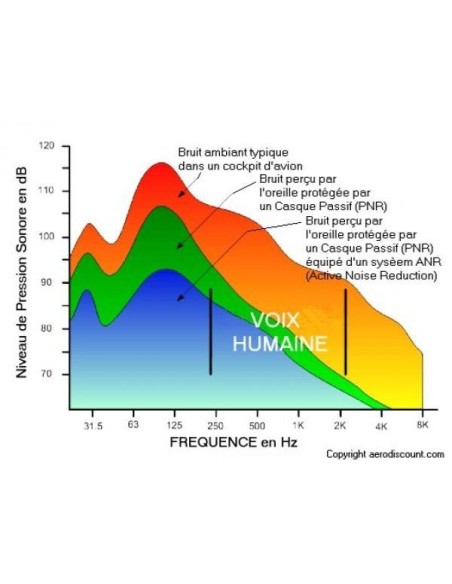

Noise Reduction Ratings (NRR):24dB with ANR 41dB

Specifications

Headphone

Type: Dynamic (F30)
Frequency Response:50 Hz to 20 kHz
Sensitivity:95+/-5 dB SPL (1 kHz, 1 mW input per earcup side) full volume on ear simulator

Active Noise Attenuation:
- Dynamic 42 ohms:
- Rate Input: 30mW
- Max.Input:100mW

Speech Sound:
- Dynamic 300 ohms:
- Rate Input: 30mW
- Max.Input:100mW

Microphone and Amplifier:
- Element Type: Noise-canceling electret
- Frequency Response:100Hz to 5 kHz
- Operating Voltage (supplied by aircraft ):8-32 Volts DC
- Matching Impedance: 150-1000 ohms
- Sensitivity:-33+/-4 dB
(ref: 0dB SPL=20.0uPa at 1 kHz with 10 Vdc 150 ohms AC load)

General

- Operating Temperature: -20 to 70°C
- Cordage: Straight cord from headset to molded plug, 150CM

Intercom Connections Plug:
- Earphone Plug: PJ-055( .25"F6.3 phone plug)
- Microphone Plug:PJ-068( .206"F5.2 phone plug)
- Weights: 600g

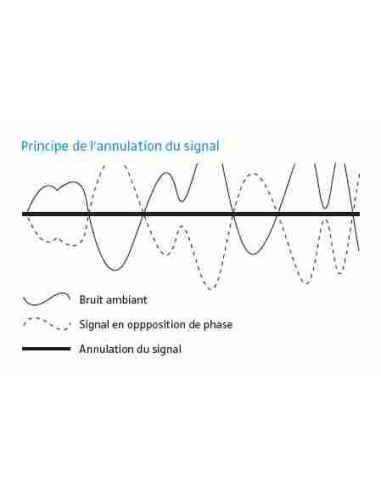

Noise Reduction Specifications:
- Attenuation Frequency Band      : 20Hz~20KHz
Main Attenuation Frequency Band : 20Hz~60-0Hz
- Attenuation Capability              : 18~21dB
- Power Consumption                  : 30 mW
- Headset size range Height         : 10 to 14 cm
- Color: Green
- Boom: Mono Hand Boom

Notice:

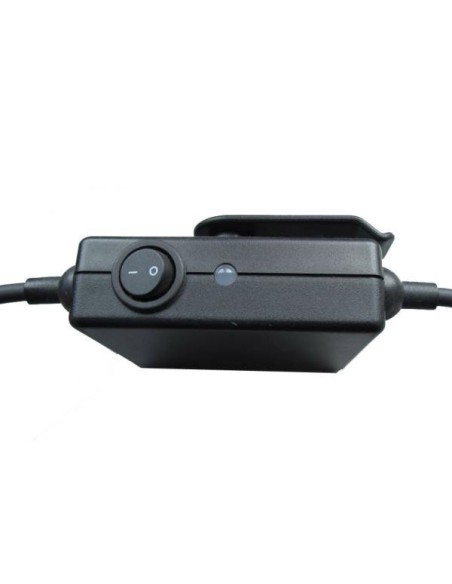

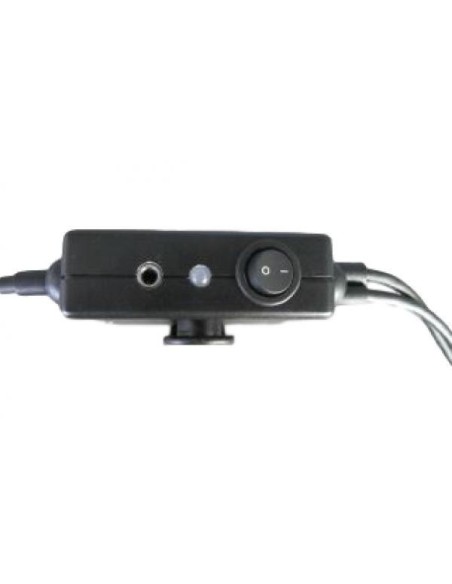

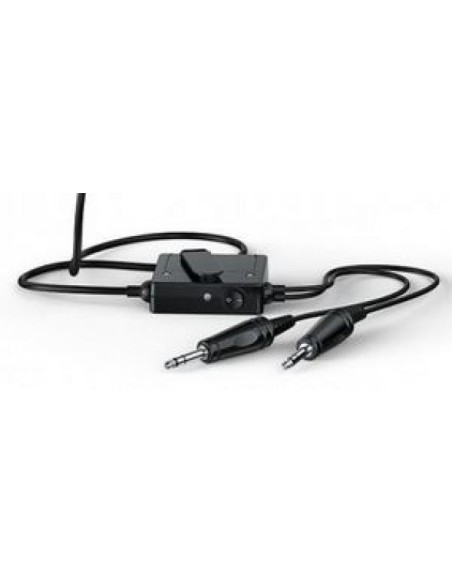

    ON/OFF Version
1. When the ON/OFF switch is on, the ANR function starts working.
2. When the battery power is low, the red LED indicator will flash. The Active Noise Reduction will cease to operate after one hour.
3. When you put off this box and want to put on it again, wait at least 30 seconds. This will be better to protect the headphone.
